Thumb throttle for e bike

Thumb throttle for e bike

The 108X-2 thumb throttle with high sensitivity, waterproof and high reliability. It it perfectly suitable to most of eBikes with our control system.

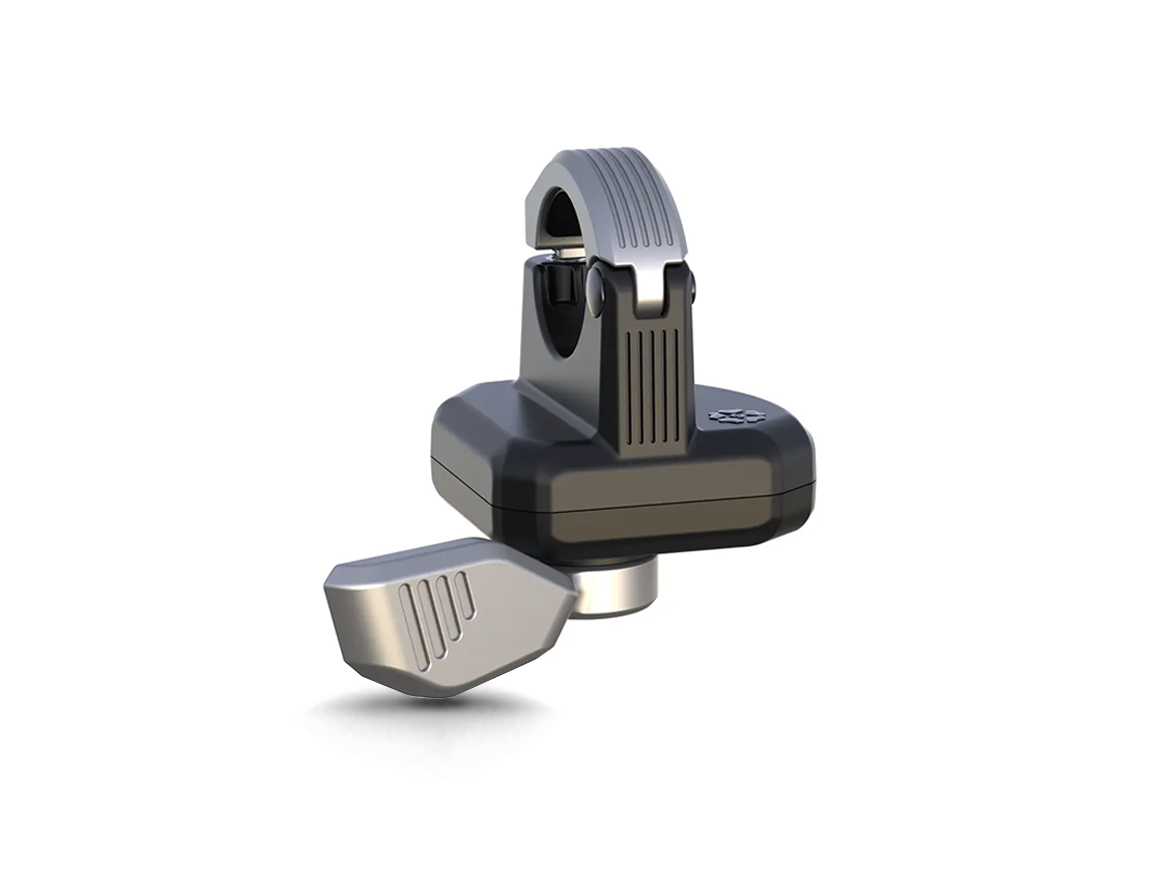

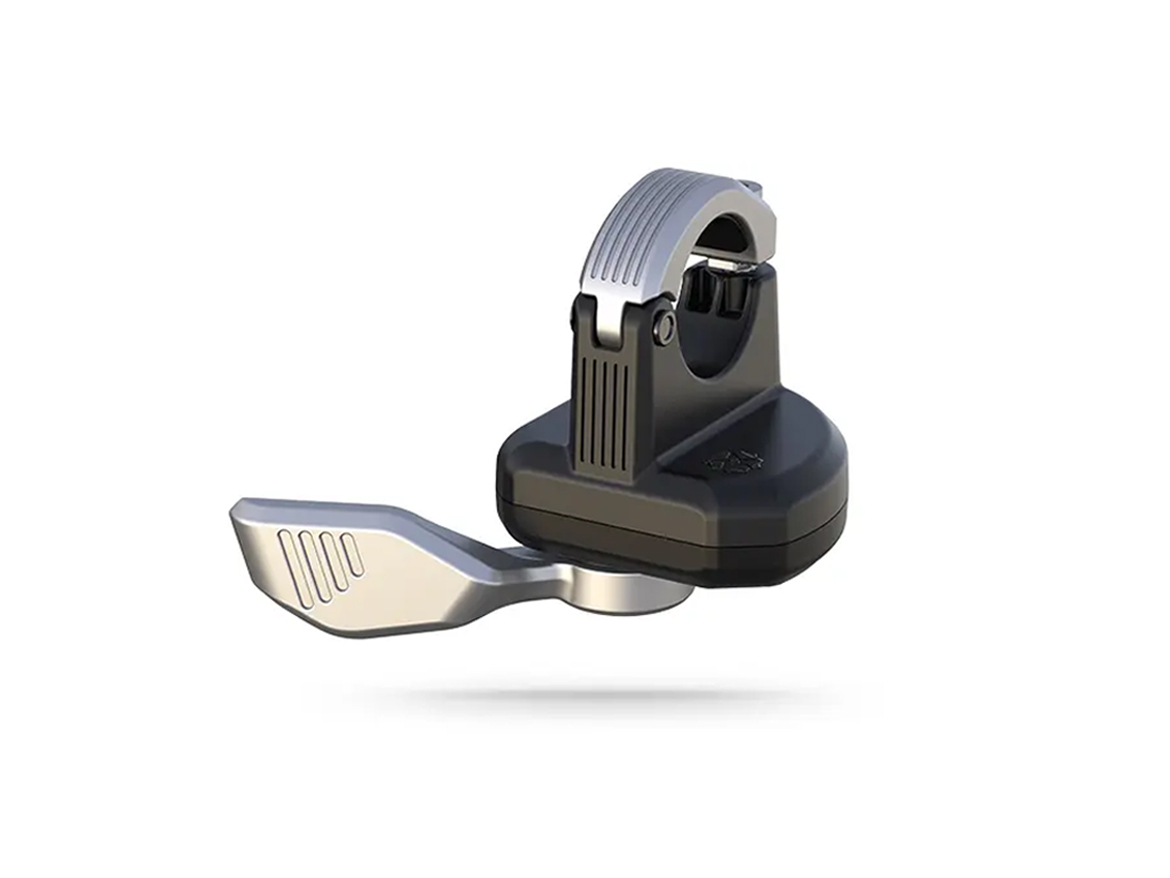

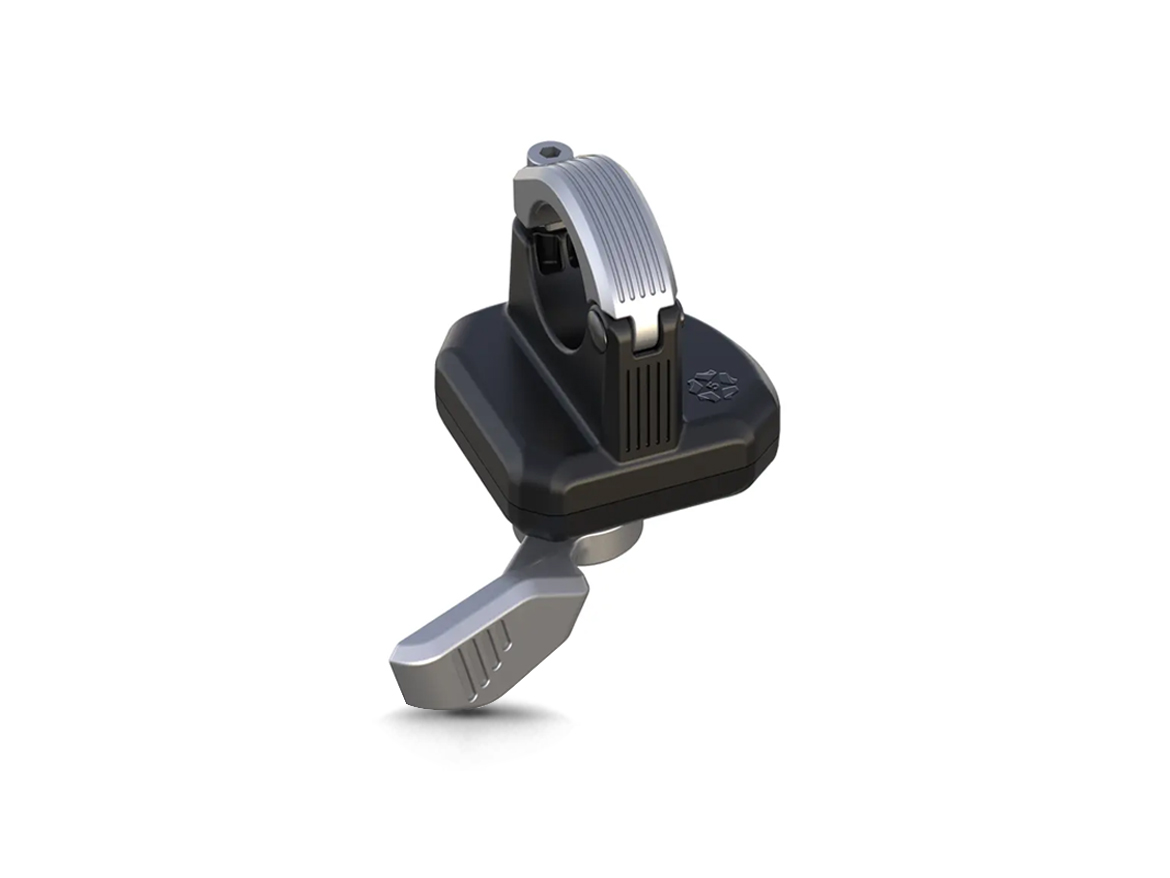

Thumb throttle for e bike 108X-2

Thumb throttle for e bike 108X-2

Item No. 108X-2
Dimensions 50×31×67mm
Operating voltage 5.0V
Number of wires 6
Waterproof grade IPX4
Quality approval RoHS丨REACH
Applications Electric Bikes; Electric scooters; Pedelec

Exquisite design
Impresseed with its modern design, exquisite shape and elegant style. It brings more riding pleasure.
Stable and durable
Thanks to the excellent circuit design to be sure all components works well for over 100,000 cycles.
Ergonomic operation
Ergonomic operation with large key area, high strenth plastic shell with light and comfortable feel.
Easy for installation
Aluminum handlebar clamping loop easy for installation with reliable and firm locking performance.

Items	Specifications	Notes
Operating voltage	5.0	V
Connector	SM-3Y+2Y+2Y丨Waterproof	/
Weight	145	g
Material	ABS, PA66, PVC	/
Operating temperature	-25~+65	℃
Wire tension	≥130N	/
Rotation angle	0~70°	/
Spin intensity	≥9N.m	/
Durability	100,000 mating cycles	/
